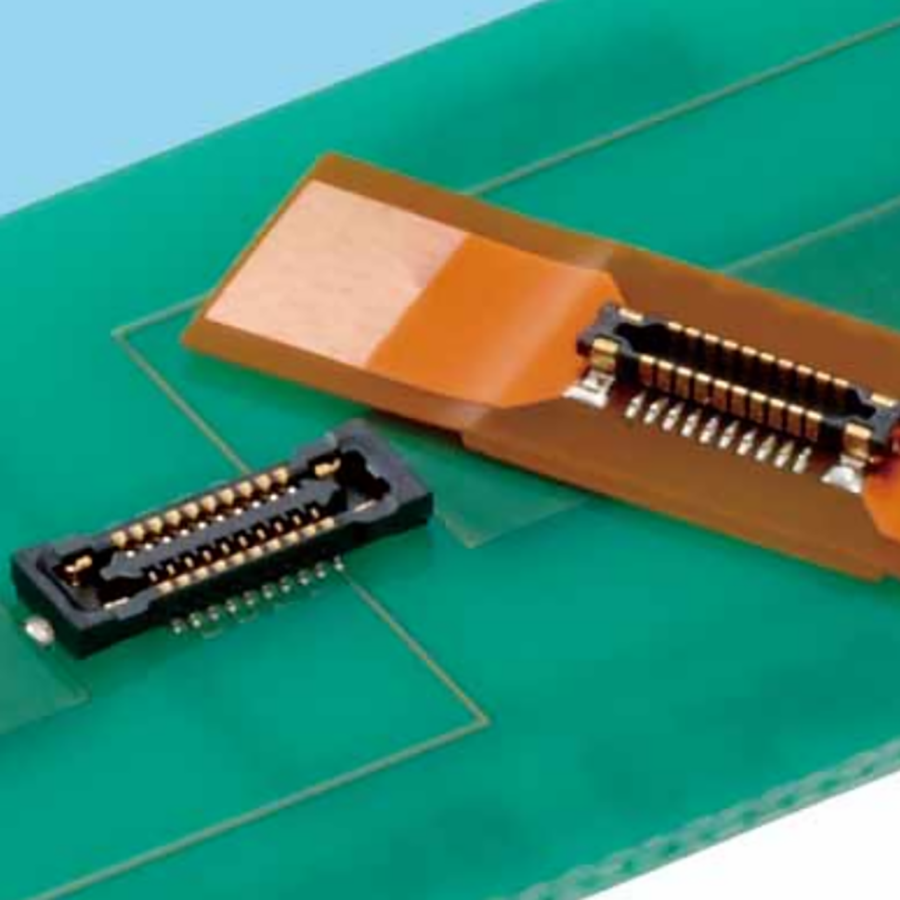

BM24-10DS/2-0.35V(53)
Manufacturer:
Hirose Electric
Mfr.Part #:
BM24-10DS/2-0.35V(53)
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle, Socket Number of Positions:10 Number of Rows:2 Pitch:350 µm
| Parameter | Value |
|---|---|
| Length | 5.25 mm |
| Width | 2.3 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 800 µm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 350 µm |
| Current Rating | 250 mA |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Connector Type | Receptacle, Socket |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Resistance | 100 mΩ |
| Housing Color | Black |
| Stack Height | 800 µm |
| Mated Stacking Heights | 800 µm |
| Contact Voltage Rating (AC) | 30 V |
| Contact Voltage Rating (DC) | 30 V |
| Contact Pitch | 0.35 mm |
| Mounting Angle | Straight |
Stock: 4199
Distributors
pcbx
pcbxUnit Price$0.60101
Ext.Price$0.60101
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60101 | $0.60101 |
| 10 | $0.42233 | $4.22330 |
| 25 | $0.40262 | $10.06550 |
| 50 | $0.38383 | $19.19150 |
| 100 | $0.36591 | $36.59100 |
| 300 | $0.35507 | $106.52100 |
| 500 | $0.34454 | $172.27000 |
| 1000 | $0.32316 | $323.16000 |
| 3000 | $0.30468 | $914.04000 |
| 5000 | $0.28726 | $1436.30000 |
| 10000 | $0.28127 | $2812.70000 |
